Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan

Name: Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 5-10
Price: 2,650.00 USD
Availability: InStock

جزئیات محصول:

محل منبع:	هنان چین
نام تجاری:	SIMO
گواهی:	CE, ISO9001:2008,TUV
شماره مدل:	SIMO Blower 5-10

اطلاعات دقیق

محل منبع:

هنان چین

نام تجاری:

SIMO

گواهی:

CE, ISO9001:2008,TUV

شماره مدل:

SIMO Blower 5-10

نوع فعلی:

گی

منبع تغذیه:

موتور AC سه فاز

تیغه:

به جلو / عقب / عقب خمیده

خنک کننده تحمل:

خنک کننده هوا یا خنک کننده آب

سر و صدا:

اختیاری

تست پروانه:

تنظیم متعادل کننده پویا

خصوصیات:

حجم زیاد ، راندمان بالا

نصب:

ایستاد

ضمانت:

1 سال

برجسته کردن:

High Light

برجسته کردن:

coal-fired boiler ventilator fan,induced draft fan for boilers,boiler system draft fan

induced draft fan for boilers

boiler system draft fan

Trading Information

مقدار حداقل تعداد سفارش:

1 ست

قیمت:

300-5000 USD

جزئیات بسته بندی:

بسته بندی جعبه چوبی صادراتی، بسته بندی پالت فولادی

زمان تحویل:

15-35 روز

شرایط پرداخت:

T/T، L/C، مدت پرداخت قابل مذاکره است

قابلیت ارائه:

500 مجموعه در هر ماه

توضیحات محصول

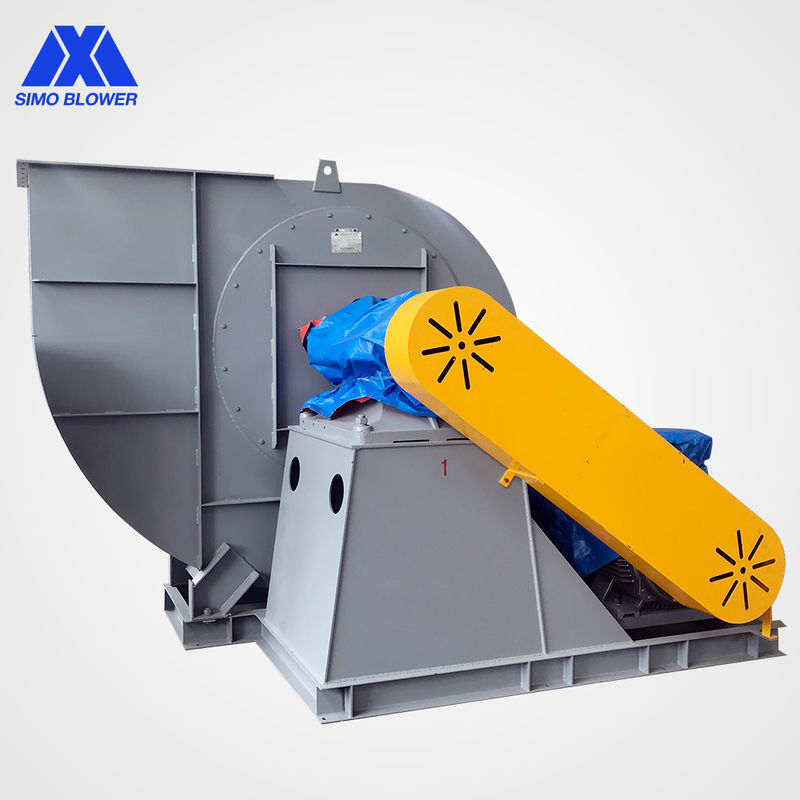

Coal-Fired Boiler System Supporting Ventilator Induced Draft Fan

This heavy-duty Induced Draft (ID) Fan is a critical component engineered for coal-fired boiler systems. It is designed to reliably handle high-temperature, abrasive flue gases containing fly ash and corrosive elements. Built with wear-resistant materials and robust construction, the fan ensures efficient boiler draft control, optimal combustion, and safe operation.

Performance Specifications

Parameter	Range	Unit
Pressure range	1638 - 10707	Pa
Air flow range	9890 - 709000	m³/h
Impeller diameter	710 - 1600	mm
Speed	480 - 1450	rpm
Material (Blower fan casing)	Q235, Q345, stainless steel	Design as special
Material (Blower fan shaft)	45# steel, Q304, SS304, SS316L
Material (Blower fan impeller)	Q304, 12Cr1Mov, 15Crmov, 15MnV
Medium	10 - 120°C, Dustiness <80 g/m³	Incombustible
Motor	Siemens, ABB, WN, SIMO, LA	IP 54,55,56, 3 phase

Optional Components

System base frame
Protective screening
Silencer
Inlet & Outlet pipeline compensator
Inlet & Outlet flange
Damper
Electric actuator
Shock isolator
Diaphragm coupling
Fluid coupling
Motor rain cover
Temperature sensor
Vibrating sensor
Soft starter
Inverter
Special Electrical Motor
System monitoring Instrument
Lube system
Overhead lube tank

Advantages and Features

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

Frequently Asked Questions

1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc. If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company's pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
